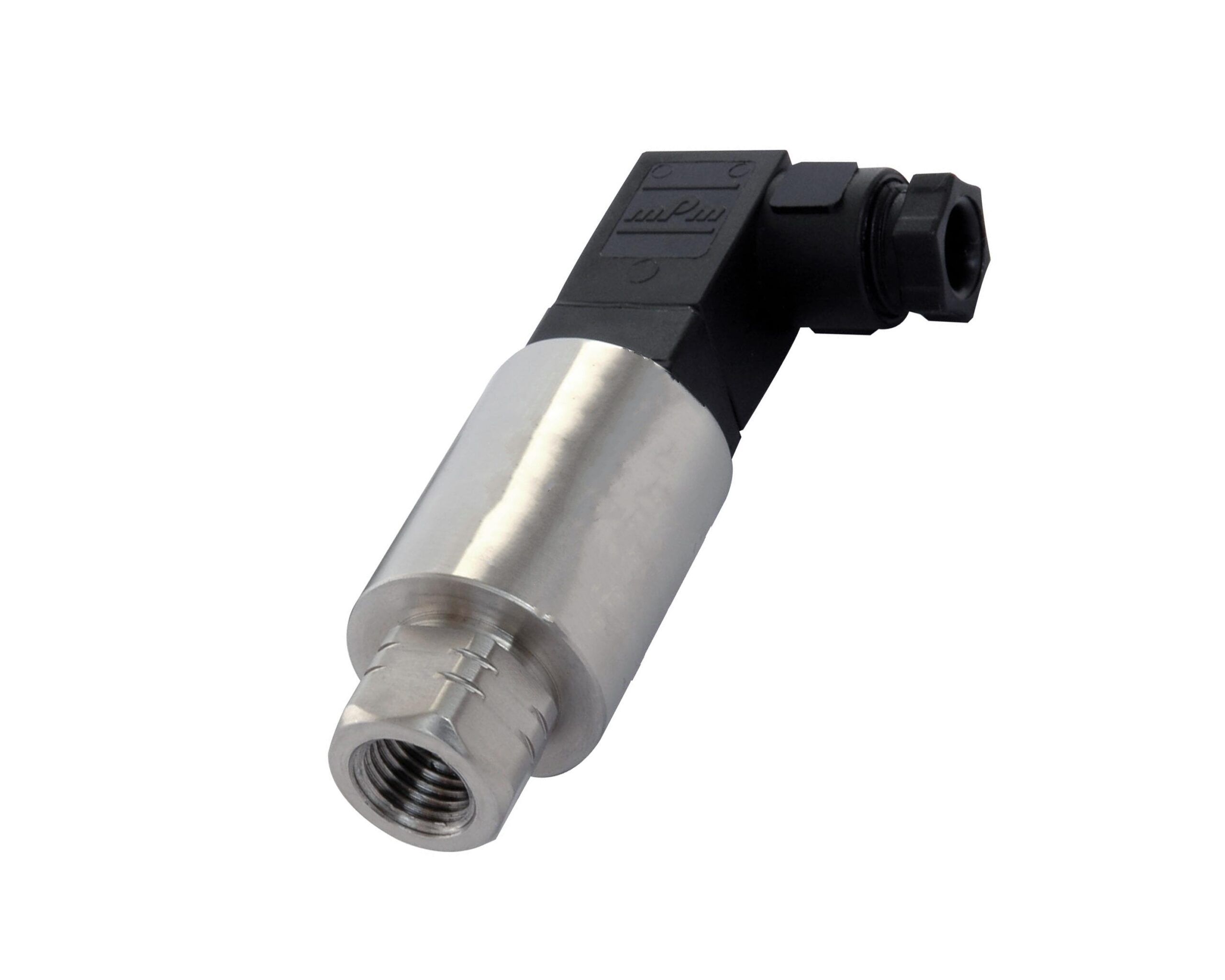

EV18001 Pressure Transmitter

Designed for general industrial application,EV18001 series pressure transmitters feature compact structure, stable quality and high cost performance.CE and RoHS certification enables extensive use of EV18001 series pressure transmitters all over the world. We can supply you in short term products with different pressure units and pressure connections to meet your specific applications.

Applications

● General pressure measurement
● Machinery manufacturing
● Measurement and control technology
● Hydraulic and pneumatic technology
● Pumps and compressors

Product Features

● Ceramic piezo-resistive sensing element

● Measuring range: 0...50～600bar (Gauge)

● Accuracy: 0.5 %BFSL or 1%BFSL

● Output: 4 ... 20 mA, DC 0 ... 10 V, DC 0 ... 5 V etc.

● Electrical connection: DIN43650C, Packard, M12x1, Cable outlet with waterproof joint, Sheathed cable outlet etc.

● Pressure connection: G1/4, 7/16-20UNF-2B female, 7/16-20UNF-2A male, NPT1/4, G1/2 etc.

● High accuracy and high cost performance

● Suitable for mass production

Performance Parameters

Temperature: 25℃, power: 5VDC or 12VDC, RH: 45%~75%, Atmospheric pressure: 86KPa～106KPa

Structures and Dimensions
