Features:

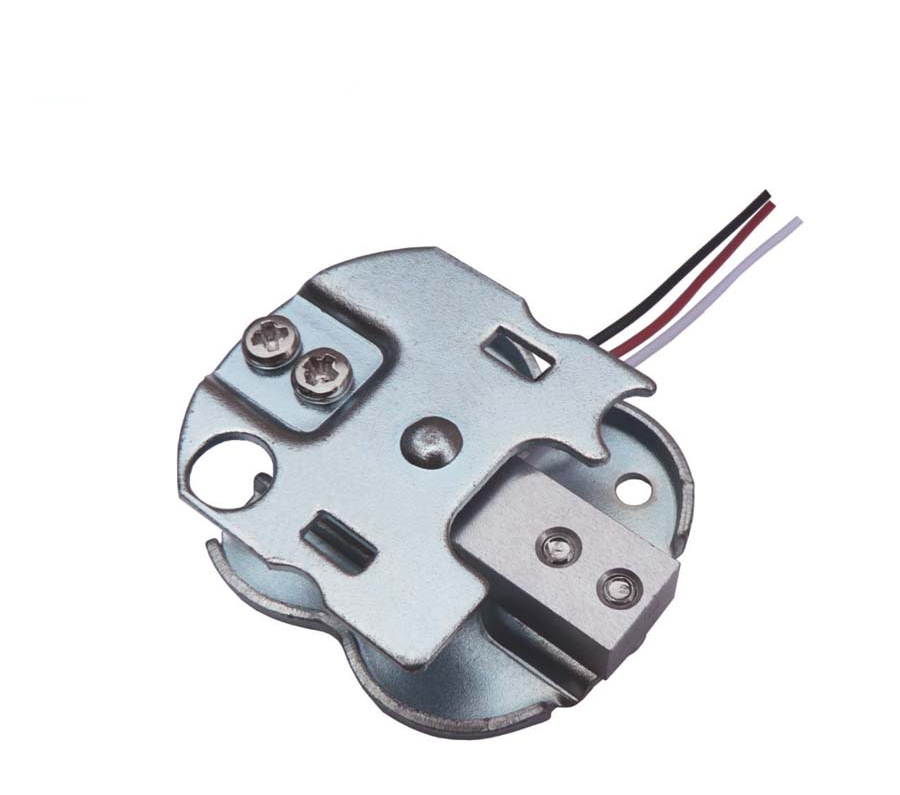

Model: EVL926
Rated load: 5KG, 4KG
Precision: 0.1%
Safe overload:150%
Ultimate overload: 200%
Type: half bridge support
Apply to:kitchen scale
| Item Specification |
| Range 4kg 5kg |
| Comprehensive erroe 0.03%FS |
| Ultimate overload 150% |
| Sensitivity 1.6±0.15mv/v |
| Non-linearity 0.1%F.S |
| Hysteresis 0.1%F.S |
| Creep 0.1%F.S/3min |
| Input resistance 1000±10Ω |
| Zero balance ±0.3mv/v |
| Output resistance 1000±10Ω |
Insulation resistance  ≥2000MΩ |
| Excitation voltage 3-10VDC |
| Use Temp.range -10~40℃ |
| Temp.effecton zero 0.2%F.S/10℃ |
| Temp.effecton span 0.1%F.S/10℃ |
| Cable φ0.8×470mm |
| Dimensions 29.7×35.5×11.4mmle |
Installationsize(mm):
